BIM, permit sets and construction drawings.

We take the production off your desk so your architects stay on design. Modeling, documentation and permit applications produced in your standards, your template and your title block, by a working architecture studio with 10+ years of delivered buildings behind it, on your working day in CET.

Start a projectSee our work

NDA signed before we receive a single file.

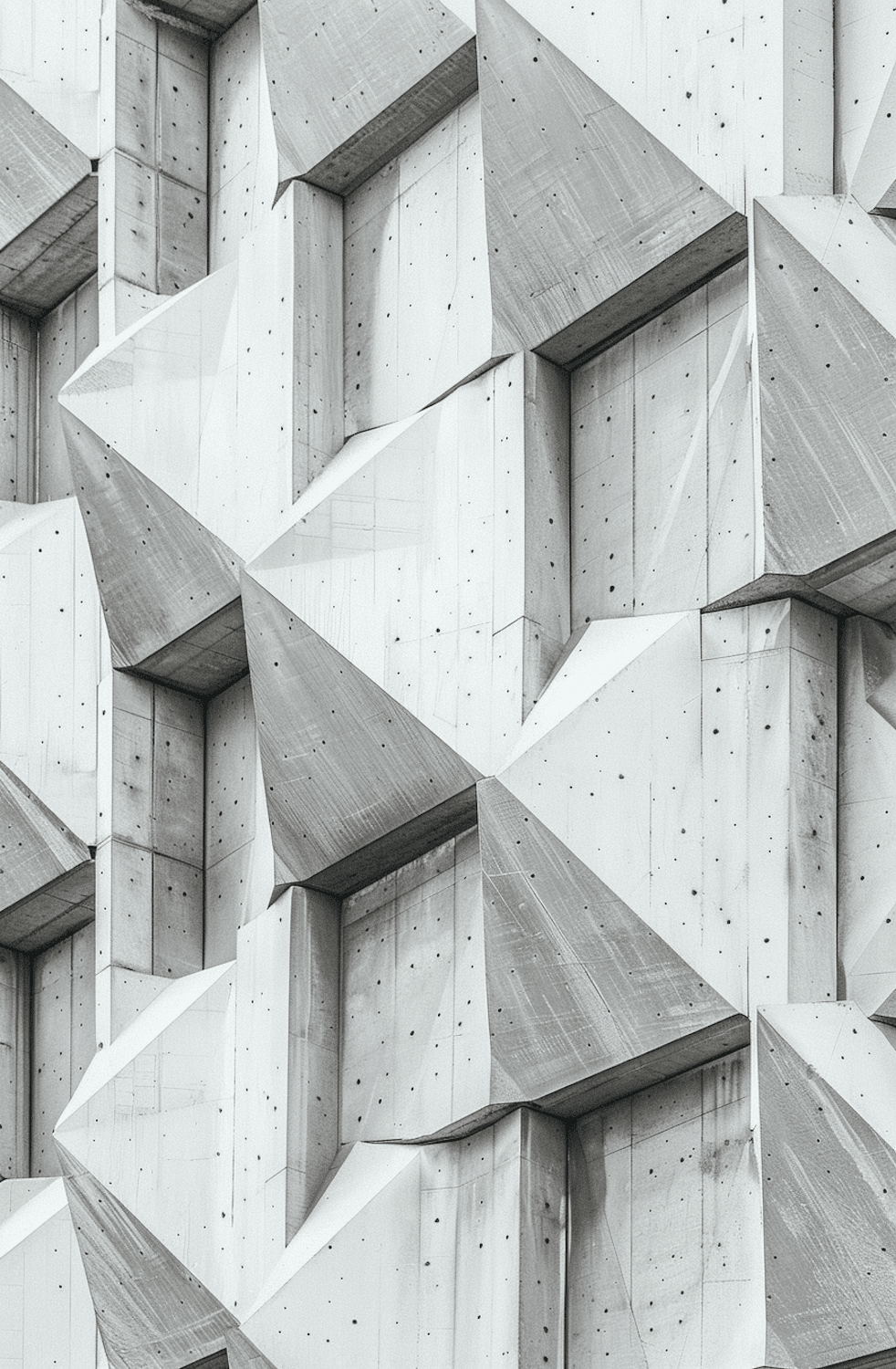

Angular concrete facade of a delivered residential building
Delivering built projects
10+ years
Projects documented
140
Architects and technicians in-house
18
Working hours
CET — the same working day as you
Confidentiality
NDA signed before we receive a single file
Who does the work
Licensed architects and technicians, in-house
Native software
Revit · ArchiCAD · AutoCAD
The problem

Turning down work, or hiring for a peak that will not last.

Both are expensive. One costs you the project, the other costs you a year of salary against a workload that swings quarter to quarter.

01

Overflow you cannot staff

A deadline lands and hiring takes three months. By the time the contract is signed, the peak has passed or the project has slipped.

02

Senior people on junior work

Your best architects are sheet-setting, renumbering doors and chasing a schedule instead of designing the next building.

03

Fixed cost, variable workload

A full-time hire is a year of commitment against a workload that swings quarter to quarter, and the quiet months are yours to carry.

We are the pressure valve.

Scale up for a deadline, scale down when it clears. Engage us for one phase or one set, with no headcount to carry, no notice period and no quiet quarter to pay for.

Ramp-up
Five working days
Commitment
One set at a time

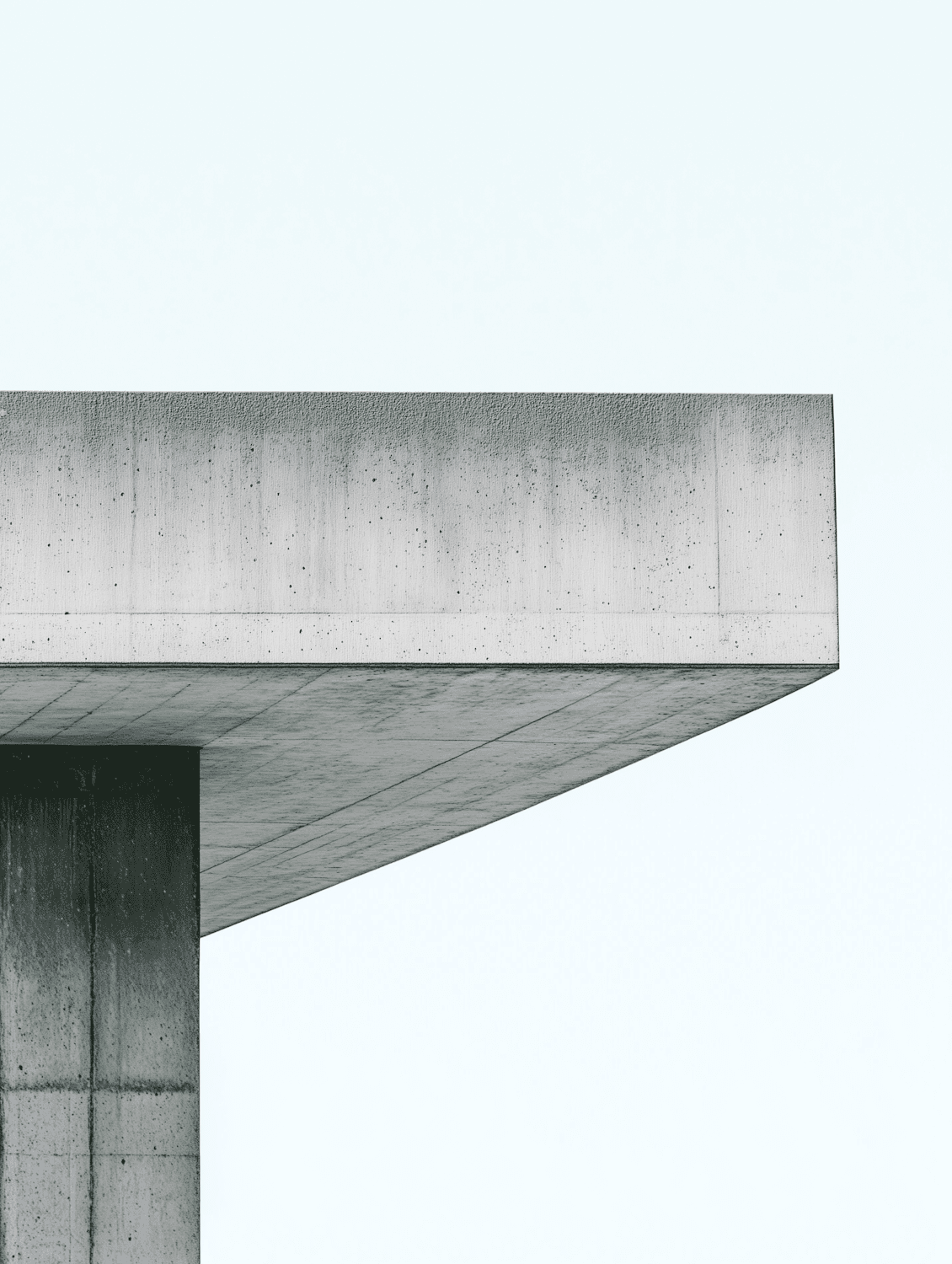

Concrete structural frame of a building in progress against a pale sky
Services

What we produce

All services

BIM modeling — Revit and ArchiCAD

Revit or ArchiCAD models from your sketches, DWGs or PDFs. LOD 100 to 400.

You get back
Native .rvt or .pln file, worksets intact, IFC 2x3 or IFC 4 export to your MVD
Typical turnaround
5–10 working days

Construction documentation

Full technical sets: plans, sections, elevations, details and schedules.

You get back
Full sheet set as PDF and native files, Door, window and finish schedules
Typical turnaround
2–4 weeks

Permit and planning application sets

Country-compliant application drawings, ready for you to submit.

You get back
Complete application set to the local layout, Area, GFA and coverage calculations
Typical turnaround
1–3 weeks

CAD drafting and conversion

PDF-to-CAD, redraws, as-builts and standards cleanup.

You get back
Layered DWG to your CAD standard, Plotted PDFs with correct line weights
Typical turnaround
2–5 working days
Why us

Architects who outsource, not a drafting vendor.

Orthograph is the production arm of Studio Nartë, a working architecture studio since 2013 with 140 projects delivered across housing, offices, education and public buildings. Every set that leaves here is checked by someone who has stood on a site, answered an RFI and defended a detail to a building inspector.

  • 01

    European codes

    Eurocode, DIN, Bouwbesluit, ISO 19650. We work in your standards, your templates and your title block.

  • 02

    CET — the same working day

    Message at 09:00, answered before lunch. No overnight handoff, no waiting a day to unblock a sheet.

  • 03

    Your workflow

    We join your ACC or BIM 360 hub, adopt your naming convention and issue from inside your environment.

  • 04

    In writing

    NDA, IP assignment, and a clause that we never approach your clients. All of it signed before work starts.

Process

From first email to delivered set

See the full process
  1. 01

    NDA

    Same day

  2. 02

    Scope call

    Within 48 hours

  3. 03

    Fixed proposal

    Within 2 working days

  4. 04

    Kick-off

    1–2 days

  5. 05

    Production with checkpoints

    Per programme

  6. 06

    QA and delivery

    Before every issue

  • Checkpoints

    Interim issues at 30% and 70%, so direction is corrected while it is still cheap.

  • Revisions

    Two rounds included in every fixed quote, not billed back to you afterwards.

  • Review

    A second licensed architect checks the set and signs the issue sheet.

Selected work

10+ years of delivered projects

Buildings we designed and documented ourselves. The drawings below are the standard we produce for partner practices.

See all work
P-016 840 m² · LOD 350 · 214 sheets

Kodra Residences

Residential, 48 units · Tirana region · 2023

Revit model at LOD 350, full construction set of 214 sheets, tender package and as-built revision.

P-023 260 m² · LOD 300 · 96 sheets

Nartë Cultural Centre

Public, exhibition and library · Vlorë county · 2022

Competition set, permit application, and a 1:20 facade package coordinated with the structural engineer.

P-0311 400 m² · LOD 300 · 178 sheets

Rruga e Dibrës Office

Commercial, speculative office · Tirana · 2024

ArchiCAD model, core and shell documentation, fit-out guidelines and a full window schedule.

Start a project

Start with one small set.

Send a real, bounded package. We sign your NDA, quote it fixed, and deliver. You judge the output, not a sales deck.

Start a projectBook a 20-min call
NDA
Within 24 hours
Scope call
30 minutes, within 48 hours
Fixed proposal
Within 2 working days
Production starts
Within 5 working days of approval

Or email hello@orthograph.eu
